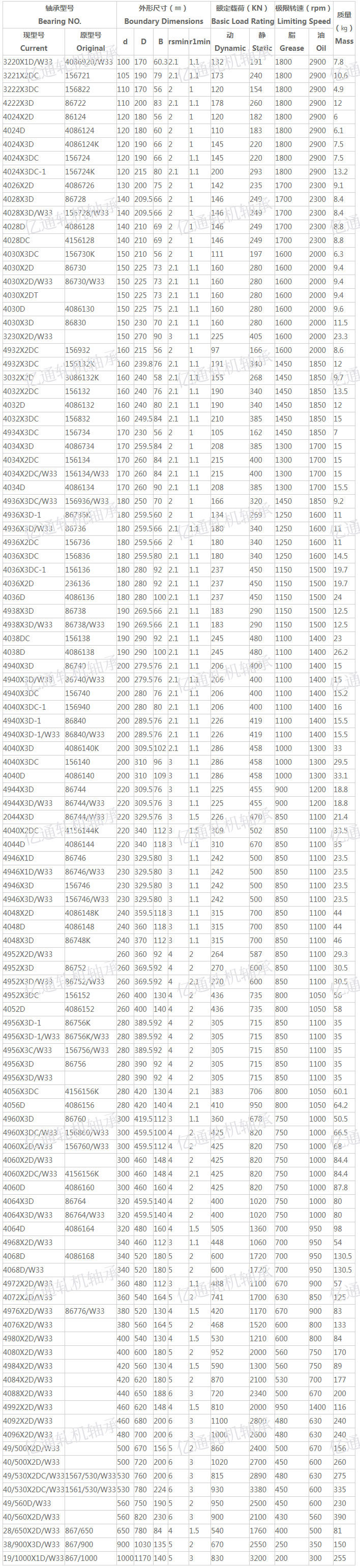

雙列角接觸球軸承軸承型號Bearing NO.外形尺寸（㎜）Boundary Dimensions額定載荷（KN）Basic Lo...

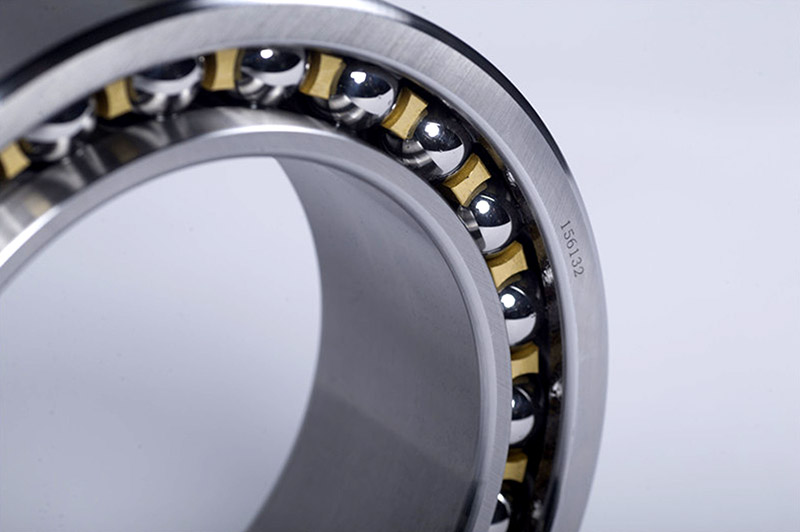

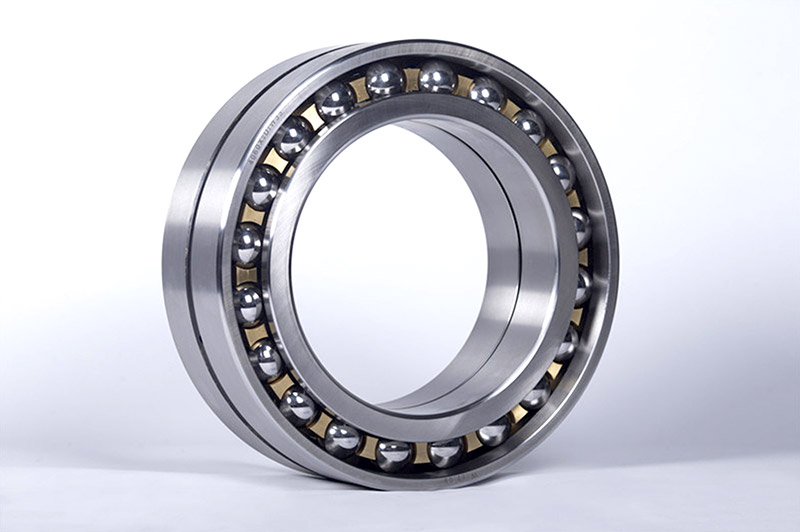

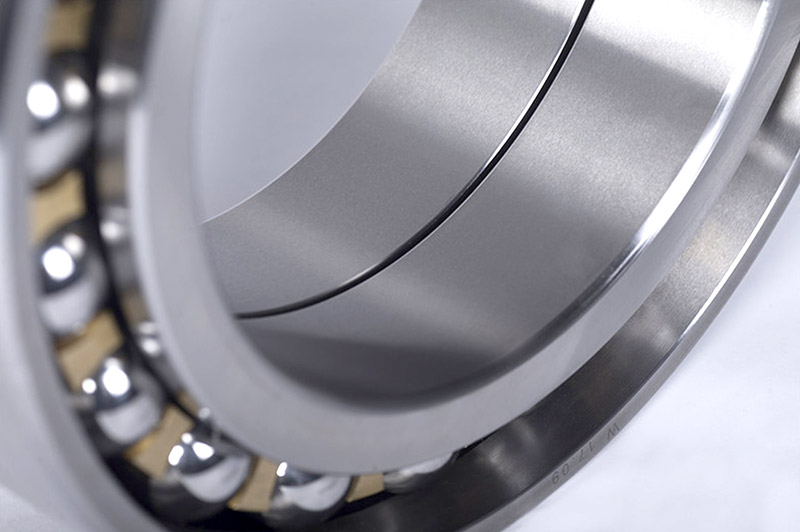

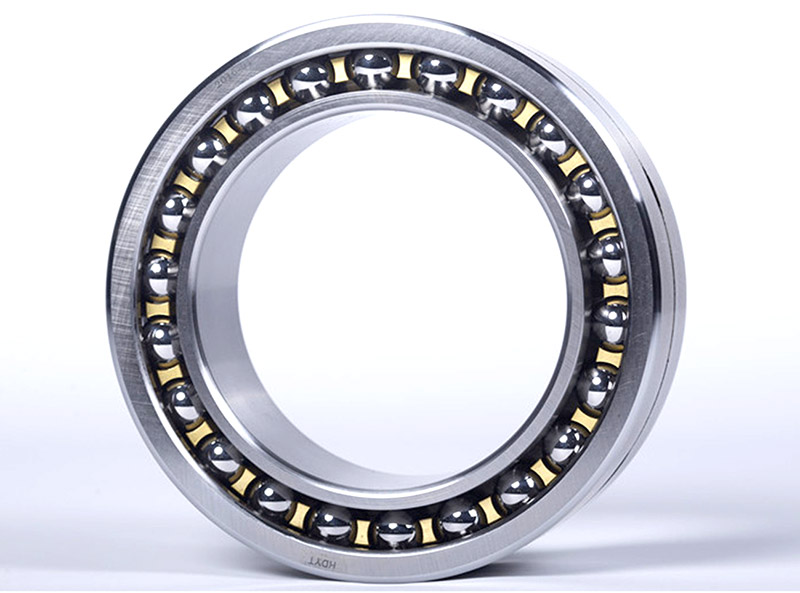

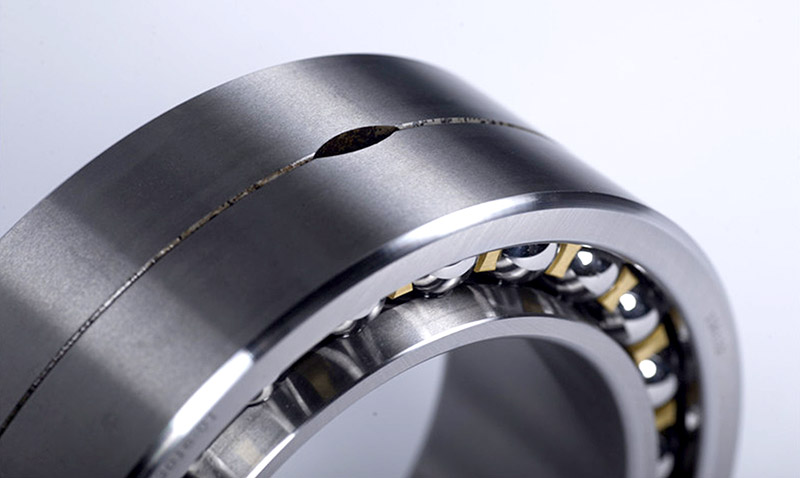

雙列角接觸球軸承
|
軸承型號 |

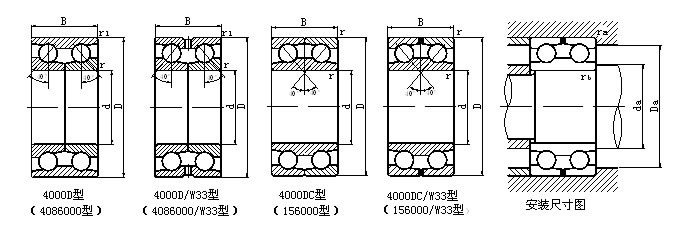

外形尺寸（㎜） |
額定載荷（KN） |
極限轉速 |
質量 |
|||||||
|
現型號 |
原型號 |
d |
D |
B |
rsmin |
r1min |
動 |
靜 |
脂 |
油 |
|
|
3220X1D/W33 |
4086920/W33 |
100 |
170 |
60.3 |
2.1 |
1.1 |
132 |
191 |
1800 |
2900 |
7.8 |
|
3221X2DC |
156721 |
105 |
190 |
79 |
2.1 |
1.1 |
173 |
240 |
1800 |
2900 |
10.6 |
|
3222X3DC |
156822 |
110 |
170 |
56 |
2 |
1 |
120 |
154 |
1800 |
2900 |
4.9 |
|
4222X3D |
86722 |
110 |
200 |
83 |
2.1 |
1.1 |
178 |
260 |
1800 |
2900 |
12 |
|
4024X2D |
86124 |
120 |
180 |
56 |
2 |
1 |
120 |
182 |
1800 |
2900 |
6 |
|
4024D |
4086124 |
120 |
180 |
60 |
2 |
1 |
110 |
183 |
1800 |
2900 |
6.1 |
|
4024X3D |
4086124K |
120 |
190 |
66 |
2 |
1 |
145 |
220 |
1800 |
2900 |
7.5 |
|
4024X3DC |
156724 |
120 |
190 |
66 |
2 |
1.1 |
145 |
220 |
1800 |
2900 |
7.5 |
|
4024X3DC-1 |
156724K |
120 |
215 |
80 |
2.1 |
1.1 |
200 |
293 |
1800 |
2900 |
13.2 |
|
4026X2D |
4086726 |
130 |
200 |
75 |
2 |
1 |
142 |
235 |
1700 |
2300 |
9.1 |
|
4028X3D |
86728 |
140 |
209.5 |
66 |
2 |
1 |
146 |
249 |
1700 |
2300 |
8.4 |
|
4028X3D/W33 |
156728/W33 |
140 |
209.5 |
66 |
2 |
1 |
146 |
249 |
1700 |
2300 |
8.4 |
|
4028D |
4086128 |
140 |
210 |
69 |
2 |
1 |
146 |
249 |
1700 |
2300 |
8.8 |
|
4028DC |
4156128 |
140 |
210 |
69 |
2 |
1 |
146 |
249 |
1700 |
2300 |
8.8 |
|
4030X3DC |
156730K |
150 |
210 |
56 |
2 |
1 |
111 |
197 |
1600 |
2000 |
6.3 |
|
4030X2D |
86730 |
150 |
225 |
73 |
2.1 |
1.1 |
160 |
280 |
1600 |
2000 |
9.4 |
|
4030X2D/W33 |
86730/W33 |
150 |
225 |
73 |
2.1 |
1.1 |
160 |
280 |
1600 |
2000 |
9.4 |
|
4030X2DT |
|
150 |
225 |
73 |
2.1 |
1.1 |
160 |
280 |
1600 |
2000 |
9.4 |
|
4030D |
4086130 |
150 |
225 |
75 |
2.1 |
1.1 |
160 |
280 |
1600 |
2000 |
9.6 |
|
4030X3D |
86830 |
150 |
230 |
70 |
2.1 |
1.1 |
160 |
280 |
1600 |
2000 |
11.5 |
|
3230X2D/W33 |
|
150 |
270 |
90 |
3 |
1.1 |
225 |
405 |
1600 |
2000 |
23.3 |
|
4932X2DC |
156932 |
160 |
215 |
56 |
2 |
1 |
97 |
166 |
1600 |
2000 |
8.6 |
|
4932X3DC |
156132K |
160 |
239.8 |
76 |
2.1 |
1.1 |
191 |
340 |
1450 |
1850 |
12 |
|
3032X2D |
3086132K |
160 |
240 |
58 |
2.1 |
1.1 |
155 |
268 |
1450 |
1850 |
9.7 |
|
4032X2DC |
156132 |
160 |
240 |
76 |
2.1 |
1.1 |
190 |
340 |
1450 |
1850 |
13.5 |
|
4032D |
4086132 |
160 |
240 |
80 |
2.1 |
1.1 |
190 |
340 |
1450 |
1850 |
12 |
|
4032X3DC |
156832 |
160 |
249.5 |
84 |
2.1 |
1.1 |
210 |
385 |
1450 |
1850 |
15 |
|
4934X3DC |
156734 |
170 |
230 |
56 |
2 |
1 |
105 |
162 |
1450 |
1850 |
7 |
|
4034X3D |
4086734 |
170 |
259.5 |
84 |
2 |
1 |
208 |
385 |
1300 |
1700 |
15 |
|
4034X2DC |
156134 |
170 |
260 |
84 |
2.1 |
1.1 |
215 |
400 |
1300 |
1700 |
15 |
|
4034X2DC/W33 |
156134/W33 |
170 |
260 |
84 |
2.1 |
1.1 |
215 |
400 |
1300 |
1700 |
15 |
|
4034D |
4086134 |
170 |
260 |
90 |
2.1 |
1.1 |
208 |
385 |
1300 |
1700 |
15.5 |
|
4936X3DC/W33 |
156936/W33 |
180 |
250 |
70 |
2 |
1 |
166 |
320 |
1450 |
1850 |
9.2 |
|
4936X3D-1 |
86736K |
180 |
259.5 |
60 |
2 |
1 |
134 |
269 |
1250 |
1600 |
11 |
|
4936X3D/W33 |
86736 |
180 |
259.5 |
66 |
2.1 |
1.1 |
180 |
340 |
1250 |
1600 |
11 |
|
4936X2DC |
156736 |
180 |
259.5 |
66 |
2 |
1 |
180 |
340 |
1250 |
1600 |
11 |
|
4036X3DC |
156836 |
180 |
259.5 |
80 |
2.1 |
1.1 |
180 |
340 |
1250 |
1600 |
14.5 |
|
4036X3DC-1 |
156136 |
180 |
280 |
92 |
2.1 |
1.1 |
237 |
450 |
1150 |
1500 |
19.7 |
|
4036X2D |
236136 |
180 |
280 |
92 |
2.1 |
1.1 |
237 |
450 |
1150 |
1500 |
19.7 |
|
4036D |
4086136 |
180 |
280 |
100 |
2.1 |
1.1 |
237 |
450 |
1150 |
1500 |
24 |
|
4938X3D |
86738 |
190 |
269.5 |
66 |
2.1 |
1.1 |
183 |
290 |
1150 |
1500 |
12.5 |
|
4938X3D/W33 |
86738/W33 |
190 |
269.5 |
66 |
2.1 |
1.1 |
183 |
290 |
1150 |
1500 |
12.5 |
|
4038DC |
156138 |
190 |
290 |
92 |
2.1 |
1.1 |
245 |
480 |
1100 |
1400 |
23 |
|
4038D |
4086138 |
190 |
290 |
100 |
2.1 |
1.1 |
245 |
480 |
1100 |
1400 |
26.2 |
|
4940X3D |
86740 |
200 |
279.5 |
76 |
2.1 |
1.1 |
206 |
400 |
1100 |
1400 |
15 |
|
4940X3D/W33 |
86740/W33 |
200 |
279.5 |
76 |
2.1 |
1.1 |
206 |
400 |
1100 |
1400 |
15 |
|
4940X3DC |
156740 |
200 |
280 |
76 |
2.1 |
1.1 |
206 |
400 |
1100 |
1400 |
15.2 |
|
4040X3DC-1 |
156940 |
200 |
280 |
80 |
2.1 |
1.1 |
206 |
400 |
1100 |
1400 |
16 |
|
4940X3D-1 |
86840 |
200 |
289.5 |
76 |
2.1 |
1.1 |
226 |
419 |
1100 |
1400 |
15.5 |
|
4940X3D-1/W33 |
86840/W33 |
200 |
289.5 |
76 |
2.1 |
1.1 |
226 |
419 |
1100 |
1400 |
15.5 |
|
4040X3D |
4086140K |
200 |
309.5 |
102 |
2.1 |
1.1 |
286 |
458 |
1000 |
1300 |
33 |
|
4040X3DC |
156140 |
200 |
310 |
96 |
3 |
1.1 |
286 |
458 |
1000 |
1300 |
29.5 |
|
4040D |
4086140 |
200 |
310 |
109 |
3 |
1.1 |
286 |
458 |
1000 |
1300 |
33.1 |
|
4944X3D |
86744 |
220 |
309.5 |
76 |
3 |
1.1 |
225 |
455 |
900 |
1200 |
18.8 |
|
4944X3D/W33 |
86744/W33 |
220 |
309.5 |
76 |
3 |
1.1 |
225 |
455 |
900 |
1200 |
18.8 |
|
2044X3D |
86744/W33 |
220 |
329.5 |
76 |
3 |
1.5 |
226 |
470 |
850 |
1100 |
21.4 |
|
4040X2DC |
4156144K |
220 |
340 |
112 |
3 |
1.5 |
309 |
502 |
850 |
1100 |
33.5 |
|
4044D |
4086144 |
220 |
340 |
118 |
3 |
1.1 |
310 |
670 |
850 |
1100 |
35 |
|
4946X1D |
86746 |
230 |
329.5 |
80 |
3 |
1.1 |
242 |
500 |
850 |
1100 |
23.5 |
|
4946X1D/W33 |
86746/W33 |
230 |
329.5 |
80 |
3 |
1.1 |
242 |
500 |
850 |
1100 |
23.5 |
|
4946X3D |
156746 |
230 |
329.5 |
80 |
3 |
1.1 |
242 |
500 |
850 |
1100 |
23.5 |
|
4946X3D/W33 |
156746/W33 |
230 |
329.5 |
80 |
3 |
1.1 |
242 |
500 |
850 |
1100 |
23.5 |
|
4048X2D |
4086148K |
240 |
359.5 |
118 |
3 |
1.1 |
315 |
700 |
850 |
1100 |
44 |
|
4048D |
4086148 |
240 |
360 |
118 |
3 |
1.1 |
315 |
700 |
850 |
1100 |
44 |
|
4048X3D |
86748K |
240 |
370 |
112 |
3 |
1.1 |
315 |
700 |
850 |
1100 |
46 |
|
4952X2D/W33 |
|
260 |
360 |
92 |
4 |
2 |
264 |
587 |
850 |
1100 |
29.3 |
|
4952X3D |
86752 |
260 |
369.5 |
92 |
4 |
2 |
270 |
600 |
850 |
1100 |
30.5 |
|
4952X3D/W33 |
86752/W33 |
260 |
369.5 |
92 |
4 |
2.1 |
270 |
600 |
850 |
1100 |
30.5 |
|
4952X3DC |
156152 |
260 |
400 |
130 |
4 |
2 |
436 |
735 |
800 |
1050 |
56 |
|
4052D |
4086152 |
260 |
400 |
140 |
4 |
2 |
436 |
735 |
800 |
1050 |
58 |
|
4956X3D-1 |
86756K |
280 |
389.5 |
92 |
4 |
2 |
305 |
715 |
850 |
1100 |
35 |
|
4956X3D-1/W33 |
86756K/W33 |
280 |
389.5 |
92 |
4 |
2 |
305 |
715 |
850 |
1100 |
35 |
|
4956X3C/W33 |
156756/W33 |
280 |
389.5 |
92 |
4 |
2 |
305 |
715 |
850 |
1100 |
35 |
|
4956X3D |
86756 |
280 |
390 |
92 |
4 |
2 |
305 |
715 |
850 |
1100 |
35 |
|
4956X3D/W33 |
|
280 |
390 |
92 |
4 |
2 |
305 |
715 |
850 |
1100 |
35 |
|
4056X3DC |
4156156K |
280 |
420 |
130 |
4 |
2.1 |
383 |
706 |
800 |
1050 |
60.1 |
|
4056D |
4086156 |
280 |
420 |
140 |
4 |
2.1 |
410 |
950 |
800 |
1050 |
64.2 |
|
4960X3D |
86760 |
300 |
419.5 |
112 |
3 |
1.1 |
360 |
678 |
750 |
1000 |
50.5 |
|
4960X3DC/W33 |
156860/W33 |
300 |
459.5 |
100 |
4 |
2 |
425 |
820 |
750 |
1000 |
66.5 |
|
4060X2D/W33 |
156760/W33 |
300 |
459.5 |
112 |
4 |
2 |
425 |
820 |
750 |
1000 |
68 |
|
4060X2D/W33 |
|
300 |
460 |
148 |
4 |
2 |
425 |
820 |
750 |
1000 |
84.4 |
|
4060X2DC/W33 |
4156156K |
300 |
460 |
148 |
4 |
2.1 |
425 |
820 |
750 |
1000 |
84.4 |
|
4060D |
4086160 |
300 |
460 |
160 |
4 |
2 |
425 |
820 |
750 |
1000 |
87.8 |
|
4064X3D |
86764 |
320 |
459.5 |
140 |
4 |
2 |
400 |
1020 |
750 |
1000 |
80 |
|
4064X3D/W33 |
86764/W33 |
320 |
459.5 |
140 |
4 |
2 |
400 |
1020 |
750 |
1000 |
80 |
|
4064D |
4086164 |
320 |
480 |
160 |
4 |
1.5 |
505 |
1360 |
700 |
950 |
98 |
|
4968X2D/W33 |
|
340 |
460 |
112 |
3 |
1.1 |
448 |
1060 |
700 |
950 |
54 |
|
4068D |
4086168 |
340 |
520 |
180 |
5 |
2 |
600 |
1720 |
700 |
950 |
130.5 |
|
4068D/W33 |
|
340 |
520 |
180 |
5 |
2 |
600 |
1720 |
700 |
950 |
130.5 |
|
4972X2D/W33 |
|
360 |
480 |
112 |
3 |
1.1 |
488 |
1100 |
670 |
900 |
57 |
|
4072X2D/W33 |
|
360 |
540 |
164 |
5 |
2 |
741 |
1700 |
630 |
850 |
125 |
|
4976X2D/W33 |
86776/W33 |
380 |
520 |
130 |
4 |
1.5 |
420 |
1170 |
670 |
900 |
83 |
|
4076X2D/W33 |
|
380 |
560 |
164 |
5 |
2 |
468 |
1520 |
600 |
800 |
133 |
|
4980X2D/W33 |
|
400 |
540 |
130 |
4 |
1.5 |
530 |
1210 |
600 |
800 |
84 |
|
4080X2D/W33 |
|
400 |
600 |
180 |
5 |
2 |
952 |
2000 |
560 |
750 |
170 |
|
4984X2D/W33 |
|
420 |
560 |
130 |
4 |
1.5 |
590 |
1300 |
560 |
750 |
89 |
|
4084X2D/W33 |
|
420 |
620 |
180 |
5 |
2 |
870 |
2100 |
530 |
700 |
177 |
|
4088X2D/W33 |
|
440 |
650 |
188 |
6 |
3 |
720 |
2340 |
500 |
670 |
200 |
|
4992X2D/W33 |
|
460 |
620 |
148 |
4 |
1.5 |
810 |
2000 |
950 |
1400 |
116 |
|
4092X2D/W33 |
|
460 |
680 |
200 |
6 |
3 |
1100 |
2800 |
480 |
630 |
240 |
|
4096X2D/W33 |
|
480 |
700 |
200 |
6 |
3 |
1000 |
2600 |
480 |
630 |
240 |
|
49/500X2D/W33 |
|
500 |
670 |
156 |
5 |
2 |
860 |
2400 |
500 |
670 |
156 |
|
40/500X2D/W33 |
|
500 |
720 |
200 |
6 |
3 |
1020 |
2700 |
450 |
600 |
260 |
|
49/530X2DC/W33 |
1567/530/W33 |
530 |
760 |
200 |
6 |
3 |
815 |
2890 |
480 |
630 |
275 |
|
40/530X2DC/W33 |
1561/530/W33 |
530 |
780 |
224 |
6 |
3 |
930 |
3380 |
450 |
600 |
335 |
|
49/560D/W33 |
|
560 |
750 |
190 |
5 |
2 |
950 |
2500 |
450 |
600 |
230 |
|
40/560X2D/W33 |
|
560 |
820 |
230 |
6 |
3 |
900 |
2100 |
430 |
560 |
390 |
|
28/650X2D/W33 |
867/650 |
650 |
780 |
84 |
4 |
1.5 |
540 |
1760 |
400 |
500 |
81 |
|
38/900X3D/W33 |
867/900 |
900 |
1030 |
135 |
5 |
2 |
670 |
2550 |
250 |
350 |
150 |
|
19/1000X1D/W33 |
867/1000 |
1000 |
1170 |
140 |
5 |
3 |
830 |
3200 |
200 |
300 |
255 |
上一個：四點接觸球軸承
下一個：單列角接觸球軸承
掃一掃，
進入手機站
CN
EN
